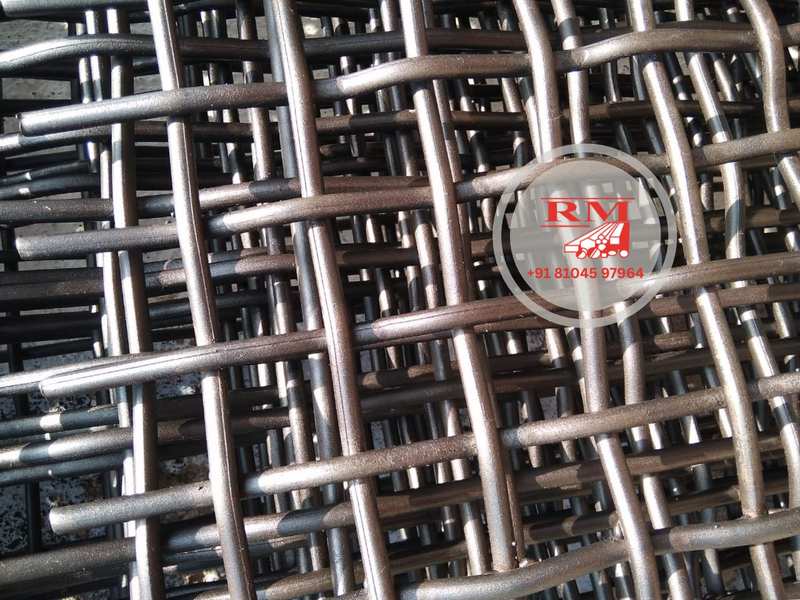

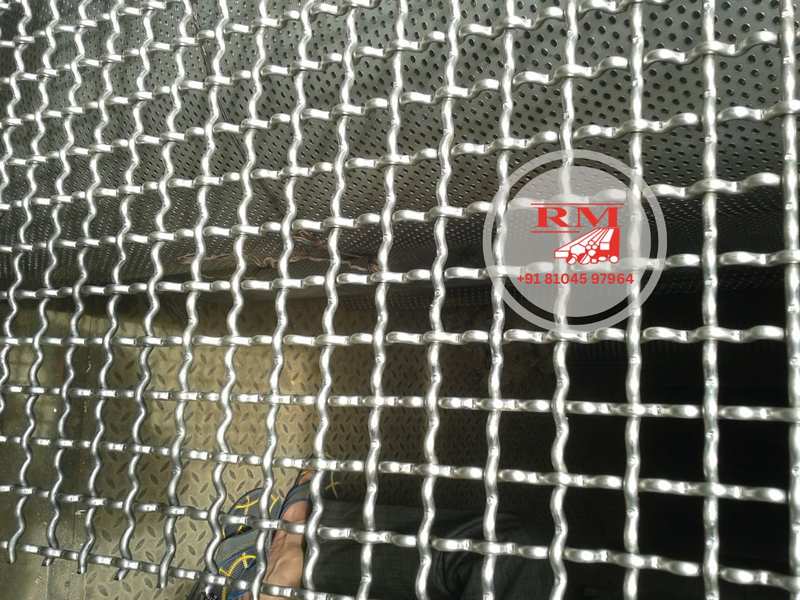

SS Wire Meshes
Raj Metals supplies SS Wire Meshes, stainless steel wire meshes for screening, filtration, separation, guarding, and architectural use. We provide dependable material selection, cutting support, documentation, and supply coordination for project and maintenance requirements.
Key Features
✓ Uniform openings
✓ Excellent corrosion resistance
✓ Woven and welded construction
✓ Useful for filtration and protection
Product Specifications
| Parameter | Details | ||
|---|---|---|---|
| Material Family / Product Form | Stainless Steel Wire Meshes | ||
| Weave Types | Plain Weave, Twilled Weave, Dutch Weave, Reverse Dutch Weave | ||
| Grades | SS 304, SS 304L, SS 316, SS 316L, SS 310, Monel, Inconel | ||
| Standard Roll Size | 3ft, 4ft, 5ft Width x 50ft / 100ft Length | ||
| Standards | ASTM, ASME, AMS, DIN, EN, JIS, and client-specific equivalent grades | ||
| Finish Options | Bright, black, pickled, polished, machined, or as per requirement | ||
| Quality Support | MTC, PMI, dimensional inspection, third-party inspection, and traceability on request | ||
SS Wire Mesh Size Chart
| Mesh Count (Per Inch) | Wire Diameter (mm / BWG) | Aperture / Opening (mm) | Open Area (%) |
|---|---|---|---|
| 4 Mesh | 1.20 mm | 5.15 mm | 65% |
| 10 Mesh | 0.60 mm | 1.94 mm | 58% |
| 40 Mesh | 0.25 mm | 0.38 mm | 36% |
| 100 Mesh | 0.10 mm | 0.15 mm | 30% |
| 200 Mesh | 0.05 mm | 0.07 mm | 34% |
