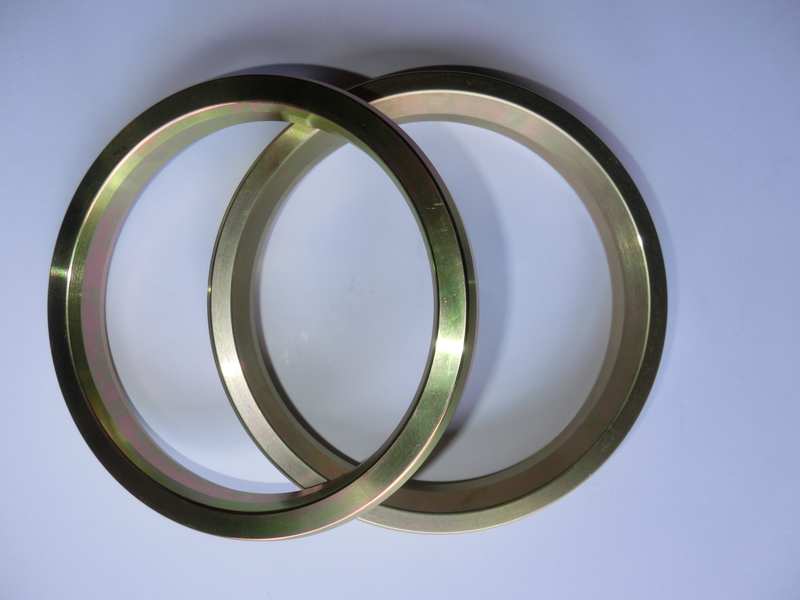

SS Joint Gaskets (RTJ)
Our high-performance Stainless Steel (SS) Ring Joint Gaskets are precision-machined to perfection from premium grades including SS 304, SS 316, SS 316L, and SS 321. Available in both Oval and Octagonal configurations, these solid metallic gaskets provide unparalleled resistance to corrosion, aggressive chemicals, and high-temperature oxidation. By maintaining meticulous heat treatment processes, we ensure our stainless steel RTJ gaskets achieve the exact hardness differential required to yield a flawless, bubble-tight seal in high-pressure wellhead manifolds, process piping, and offshore extraction networks.
Key Features
✓ Precision-Engineered Metal-to-Metal Sealing
✓ Extreme Pressure Resistance (Up to 20,000 PSI)
✓ Strict Hardness Control to Protect Flange Grooves
✓ Available in Oval, Octagonal, and BX/RX Profiles
Product Specifications
| Parameter | Details |
|---|---|
| Gasket Profiles | Style R (Oval & Octagonal), Style RX (Self-Energizing), Style BX, Stainless Steel RTJ Gaskets |
| Material of Construction | Stainless Steel (SS 304, SS 316, SS 316L, SS 321, SS 347) |
| Size Range | 1/2" to 36" (Standard R & RX) | BX sizes up to 30" |
| Pressure Class | Class 150# to 2500# | API 2000 to 20,000 PSI |
| Surface Finish | Ra 1.6 μm (Maximum) | Mirror-like precision on sealing faces |
| Design Standard | ASME B16.20, API 6A (Oilfield Equipment) |
| Manufacturing Type | Precision Forged and CNC Machined |
| Condition | Fully Annealed (Strict hardness control: SS grades controlled to max 160 HB to protect flange grooves) |
| Testing | PMI (Positive Material Identification), Hardness Testing (Brinell/Rockwell), Dimensional Audit |
High-Pressure Metallic & Stainless Steel Ring Joint Gaskets (RTJ) Size Chart
| Nominal Size | Pressure Class | Type | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | 150# / 300# / 600# | RF / FF / RTJ | Small bore flanges |
| 2-1/2" - 8" | 150# / 300# / 600# / 900# | Spiral wound / Ring / Sheet | Process piping |
| 10" - 24" | 150# / 300# / 600# | Standard and custom thickness | Plant maintenance |
| Above 24" | As per project duty | Custom OD / ID | Project requirement |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316, SS 321), specific hardness constraints, and drawings are available on request. | ||
