Plugs & Crosses
Our premium Stainless Steel (SS) Plugs and Crosses are explicitly designed to deliver outstanding resistance to corrosion, high temperatures, and chemical wear. Crafted from high-grade materials such as SS 304, SS 316, and SS 316L, these robust fittings are the preferred choice for maintaining leak-proof, hygienic seals and complex branching in demanding environments. They are highly sought after across the pharmaceutical, food and beverage, petrochemical, and chemical processing industries, guaranteeing extended service life and rust-free performance under rigorous operational conditions.
Key Features
✓ Secure Termination of Threaded Ports (Plugs)

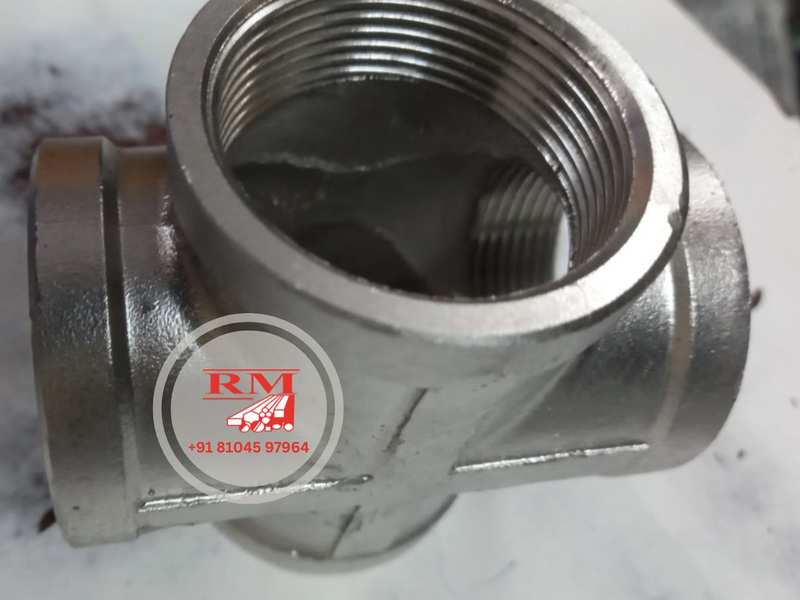

✓ Efficient 4-Way Flow Distribution (Crosses)
✓ High-Pressure Forged Integrity (Up to 9000#)
✓ Available in Stainless, Carbon, and Alloy Steel
Product Specifications
| Parameter | Details |
|---|---|
| Product Form | Hex Plug, Square Head Plug, Round Head Plug, 4-Way Cross, Stainless Steel Plugs & Crosses |
| Material of Construction | Stainless Steel (SS 304, SS 316, SS 304L, SS 316L) |
| Size Range | 1/8" NB to 4" NB |
| Pressure Class | 2000#, 3000#, 6000#, 9000# |
| Connection Types | Threaded (NPT, BSPT, BSPP), Socket Weld (SW) |
| Manufacturing Type | Forged and Precision CNC Machined |
| Design Standard | ASME B16.11, BS 3799, MSS-SP-83/95 |
| Surface Treatment | Pickled & Passivated (for SS), Electro-Galvanized, Black Phosphated |
| Quality Testing | Hydro-test, Thread Gauge Audit, PMI, Dimensional Check |
| Certification | MTC EN 10204 3.1, NACE MR0175 / MR0103 Compliance |
Forged & Stainless Steel Plugs & Four-Way Crosses Size Chart
| Nominal Size | Schedule / Class | Type | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | SCH 10 / 40 / 80 / 160 | Seamless / Welded | Small bore piping |
| 2-1/2" - 8" | STD / XS / XXS | Butt weld / Threaded / Socket weld | Process piping |
| 10" - 24" | Standard and heavy wall | Butt weld | Plant and refinery lines |
| Above 24" | As per drawing | Fabricated / Custom | Project requirement |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316, SS 316L), finishes, and drawings are available on request. | ||
