SS End Caps & Stub Ends

Raj Metals is a leading manufacturer of Stainless Steel Pipe End Caps and Stub Ends, engineered to meet the stringent demands of critical industrial piping environments. Our End Caps provide a robust, leak-proof solution for terminating pipelines, effectively protecting systems from internal pressure, debris, and external contaminants. For systems requiring frequent maintenance and simplified bolt-hole alignment, our Stub Ends (available in both Long and Short patterns) are designed to work seamlessly with Lap Joint flanges, offering a highly flexible and cost-effective connection. Precision-formed from stainless steel—such as 304L and 316L—these fittings ensure maximum structural integrity and superior corrosion resistance, making them the preferred choice for demanding chemical processing, oil & gas, and offshore infrastructure projects.

Key Features of Our SS End Caps & Stub Ends

✓ Reliable Pipeline Termination for Permanent or Temporary Service (End Caps)

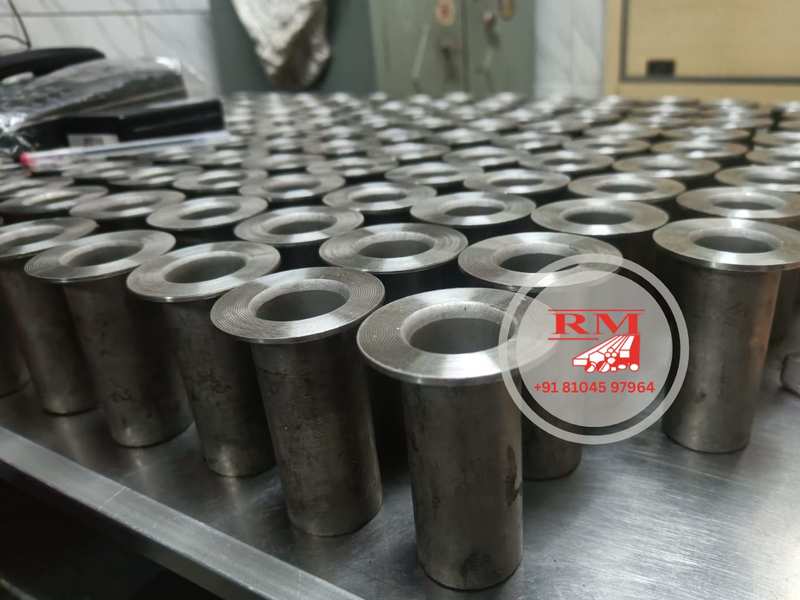

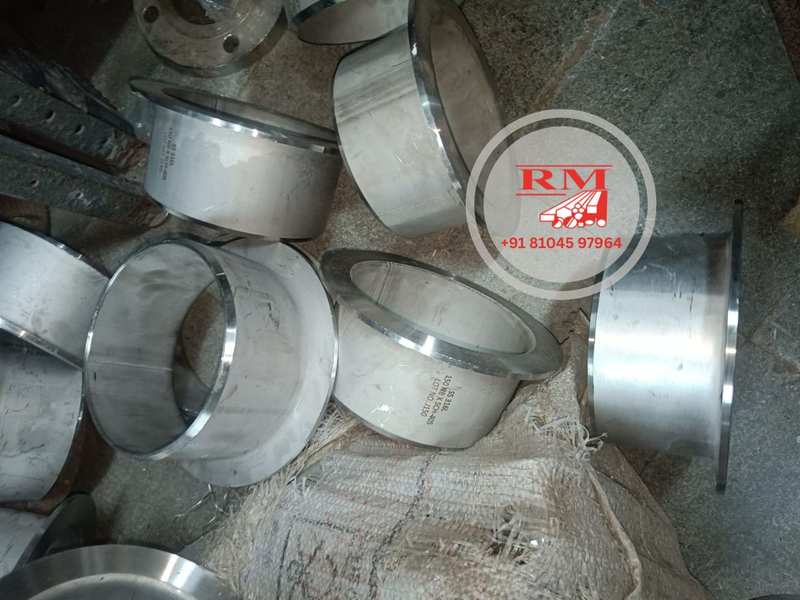

✓ Optimized Bolt-Hole Alignment with Lap Joint Flanges (Stub Ends)

✓ Exceptional Wall Thickness Consistency & High-Pressure Containment

✓ Precision-Engineered in Both Deep-Drawn & Forged Configurations

Product Specifications

Parameter	Details
Product Form	SS Pipe End Caps (Dished), Stub Ends (Long/Short Pattern)
Stub End Types	Type A (Lap Joint), Type B (Slip-on Flange compatible)
Size Range	1/2" NB to 72" NB
Wall Thickness	SCH 10S, 40S, 80S, 160 (Per ASME B36.19)
Manufacturing Type	Buttweld (Seamless & Welded), Deep Drawn
Standard Compliance	ASME B16.9 (Buttweld), MSS-SP-43 (Stainless Steel)
Surface Finish	Pickled & Passivated, Electro-Polished, or Bright Finish

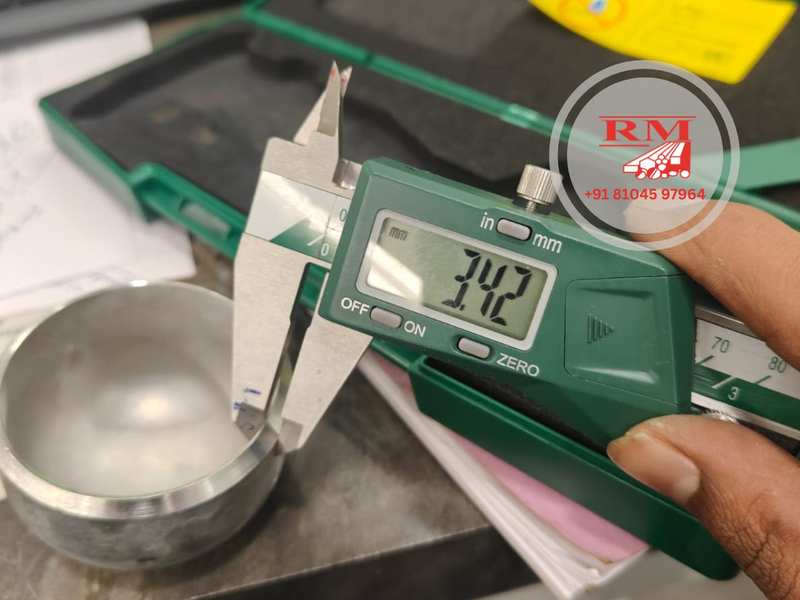

Inspection	PMI, Ultrasonic (UT), Radiography (RT), Dimensional Audit
Certification	MTC EN 10204 3.1, NACE MR0175 / MR0103 Compliance

SS End Caps & Stub Ends Size Guide

Nominal Size	Wall Schedule	Type	Recommended Use
1/2" - 2"	SCH 10S / 40S / 80S	Seamless	Small-bore pipeline termination
2-1/2" - 8"	STD / XS / SCH 40S	Seamless / Welded	Process piping maintenance
10" - 24"	Standard / Heavy Wall	Butt weld	Plant & refinery main lines
Above 24"	As per project specs	Fabricated	Custom large-scale infrastructure
Custom Requirement	Custom dimensions, exotic SS grades (316Ti, 904L), and drawings are available.
