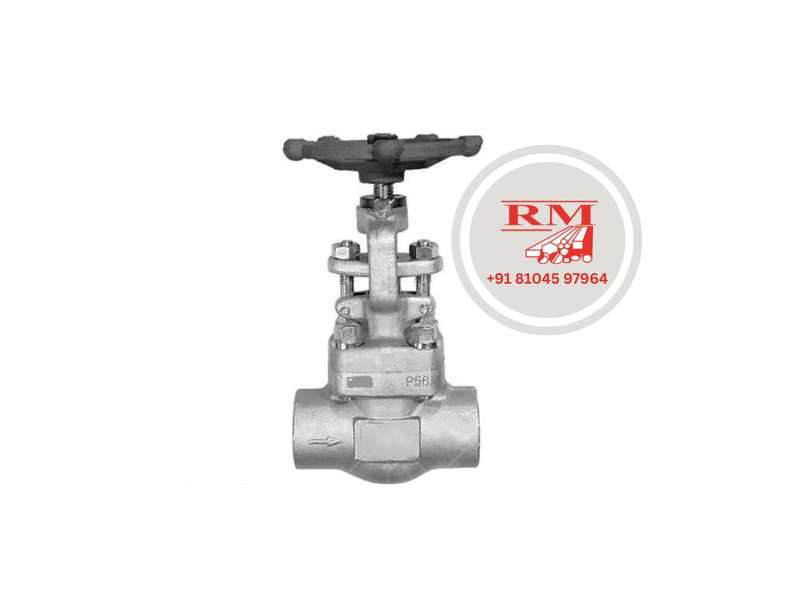

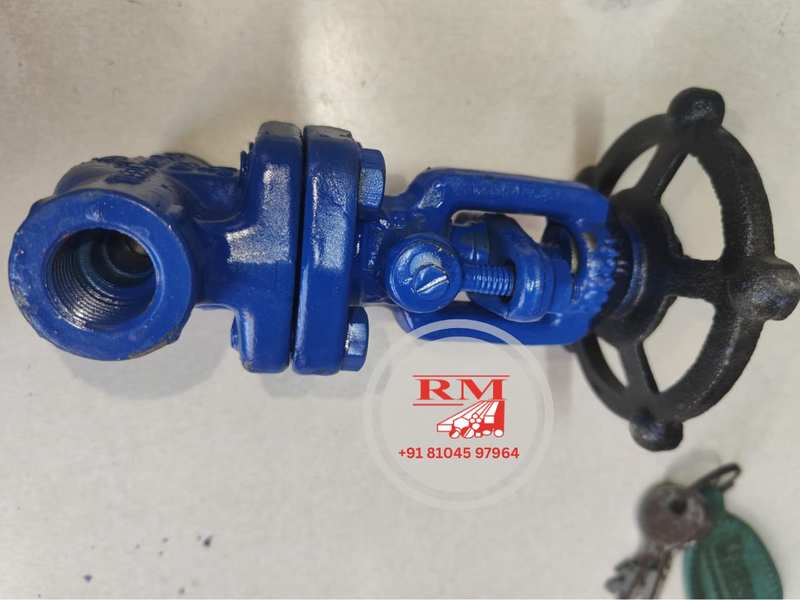

Gate Valves
Raj Metals provides a robust range of Gate Valves, engineered for reliable isolation in liquid and gas piping systems. Designed with a sliding wedge that moves perpendicular to the flow, our gate valves ensure minimal pressure drop and a completely unobstructed flow path when fully open. Whether you require Bolted Bonnet, Pressure Seal, or Forged Steel gate valves, our products are manufactured to provide a tight leak-proof seal and long-term durability in high-pressure, high-temperature industrial environments.
Key Features
✓ Unobstructed Flow & Low Pressure Drop
✓ Bi-Directional Leak-Proof Sealing
✓ Superior Corrosion Resistance (SS 304/316)
✓ Ideal for Harsh Chemicals & High Temps
Product Specifications
| Parameter | Details |
|---|---|
| Product Type | Bolted Bonnet, Pressure Seal, Forged Steel, Knife Gate Valve, Stainless Steel Gate Valve |
| Material of Construction | Stainless Steel (SS 304, SS 316, SS 304L, SS 316L, CF8, CF8M), Carbon Steel, Alloy Steel |
| Size Range | 1/2" to 48" (DN15 to DN1200) |
| Pressure Class | Class 150#, 300#, 600#, 900#, 1500#, 2500# | PN10 to PN160 |
| End Connections | Flanged (RF, RTJ), Butt-Weld (BW), Socket Weld (SW), Threaded (NPT) |
| Operation | Handwheel, Gear Operated, Electrical Actuator, Pneumatic |
| Design Standard | API 600, API 602, API 603, ASME B16.34, BS 1414 |
| Testing Standard | API 598 (Leakage & Pressure Testing) |
| Wedge Type | Flexible Wedge, Solid Wedge, Split Wedge |
| Certifications | MTC EN 10204 3.1, Fire Safe Certified (API 607), NACE Compliance |
Stainless Steel Gate Valves Size Chart
| Nominal Size | Pressure Class | Connection / Operation | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | Class 150 / 300 / 600 | Threaded / Socket Weld / Flanged | Utility and process isolation |
| 2-1/2" - 8" | Class 150 / 300 / 600 / 900 | Flanged / Wafer / Lug | Plant piping service |
| 10" - 24" | Class 150 / 300 / 600 | Flanged / Gear operated | Large diameter flow control |
| Above 24" | As per project duty | Manual / Gear / Actuated | Custom industrial service |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316, SS 316L), finishes, and drawings are available on request. | ||
