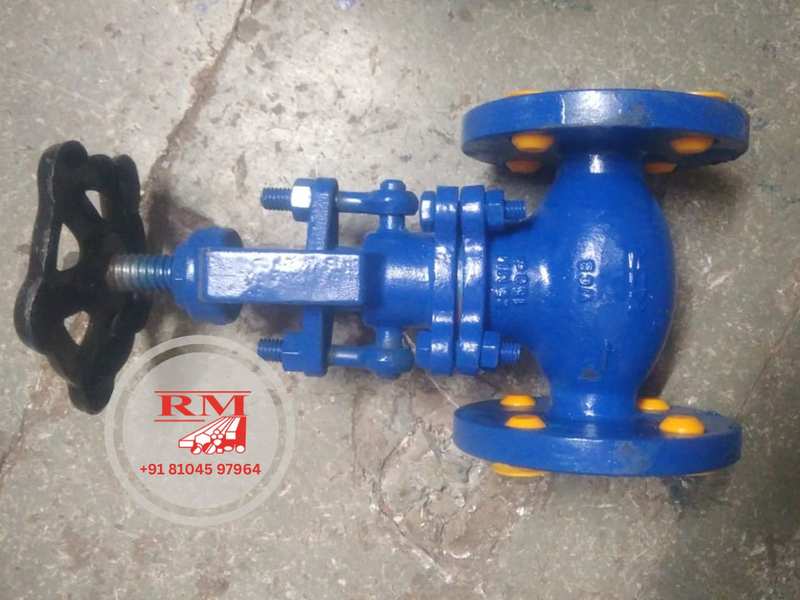

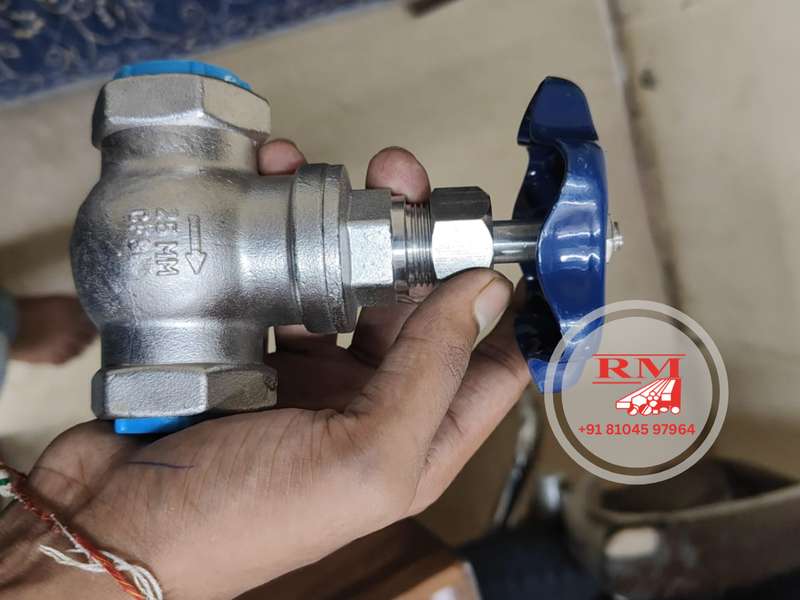

Globe Valves
Our Stainless Steel (SS) Globe Valves are specifically manufactured to deliver exceptional resistance to corrosion, pitting, and oxidation. Available in premium grades such as SS 304, SS 316, and SS 316L, these valves are the preferred solution for regulating flow in highly corrosive environments, including chemical processing, pharmaceuticals, food and beverage, and petrochemical plants. The durable stainless steel construction ensures reliable throttling, tight shut-off, and a prolonged operational life even under extreme temperatures and aggressive media.
Key Features
✓ Precise Throttling & Flow Control
✓ Fast Operation & Tight Shut-off
✓ Superior Corrosion Resistance (SS 304/316)
✓ Ideal for Harsh Chemicals & High Temps
Product Specifications
| Parameter | Details |
|---|---|
| Valve Type | Bolted Bonnet, Pressure Seal, Straight Pattern, Y-Pattern, Angle Pattern, Stainless Steel Globe Valve |
| Material of Construction | Stainless Steel (SS 304, SS 316, SS 304L, SS 316L, CF8, CF8M), Carbon Steel, Alloy Steel |
| Size Range | 1/2" to 24" (DN15 to DN600) |
| Pressure Class | Class 150#, 300#, 600#, 900#, 1500#, 2500# | PN10 to PN160 |
| End Connections | Flanged (RF, RTJ), Butt-Weld (BW), Socket Weld (SW), Threaded (NPT) |

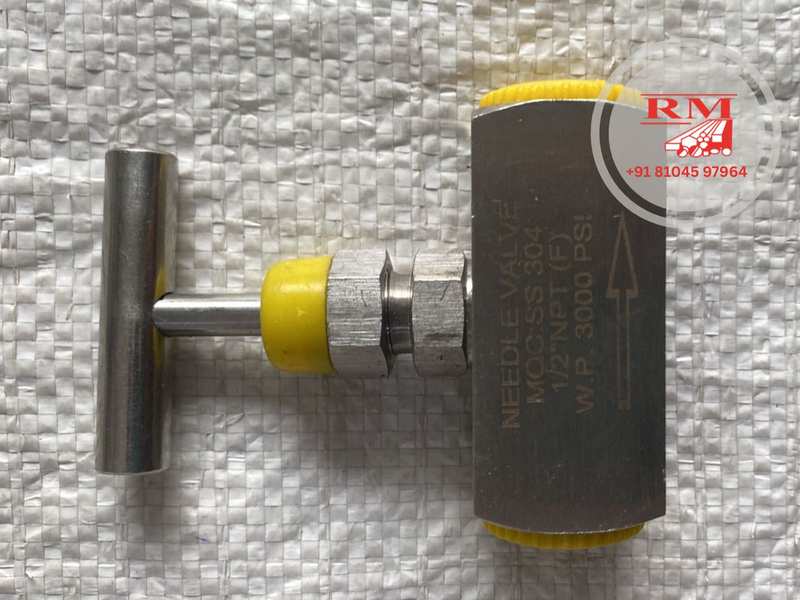

| Disc Type | Plug Disc, Regulating Disc, Needle Type Disc |
| Design Standard | BS 1873, API 602, ASME B16.34 |
| Testing Standard | API 598 (Seat Leakage & Shell Testing) |
| Operation | Handwheel, Bevel Gear, Electric/Pneumatic Actuator |
| Certifications | MTC EN 10204 3.1, NACE MR0175 / MR0103, IBR (Optional) |
Precision Industrial & Stainless Steel Globe Valves Size Chart
| Nominal Size | Pressure Class | Connection / Operation | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | Class 150 / 300 / 600 | Threaded / Socket Weld / Flanged | Utility and process isolation |
| 2-1/2" - 8" | Class 150 / 300 / 600 / 900 | Flanged / Wafer / Lug | Plant piping service |
| 10" - 24" | Class 150 / 300 / 600 | Flanged / Gear operated | Large diameter flow control |
| Above 24" | As per project duty | Manual / Gear / Actuated | Custom industrial service |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316, SS 316L), finishes, and drawings are available on request. | ||
