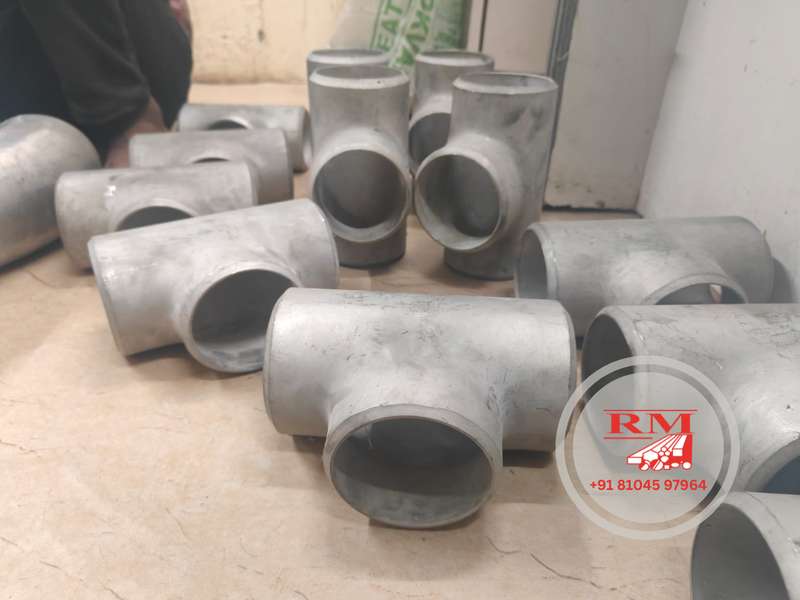

Stainless Steel Pipe Tees (Equal & Reducing)
Raj Metals is a leading manufacturer of Stainless Steel Pipe Tees, essential for creating robust 90-degree branches in critical industrial piping systems. Our Equal Tees are engineered for systems requiring a uniform flow distribution where the branch diameter matches the header pipe. For branching requirements involving a change in flow volume, our Unequal (Reducing) Tees facilitate a seamless transition to a smaller pipe diameter, effectively minimizing the need for additional fittings and reducing potential leak points. Precision-forged and solution-annealed, our SS tees offer superior wall thickness consistency and are engineered to withstand the highly corrosive, high-pressure environments common in chemical processing, power plants, food-grade manufacturing, and refinery piping systems.
Key Features of Our SS Pipe Tees
✓ Precision 90-Degree Branching for Optimized Fluid Distribution
✓ Superior Structural Integrity to Withstand Extreme Pressure & Stress
✓ Available in Both Seamless and High-Frequency Welded Fabrications
✓ Expertly Beveled Ends for Seamless, Leak-Proof Buttweld Installation
Product Specifications
| Parameter |
Details |
| Product Form |
Equal Tee (Straight), Reducing Tee (Unequal) |
| Size Range |
1/2" NB to 72" NB |
| Wall Thickness |
SCH 10S, 40S, 80S, 160, XXS (Per ASME B36.19/B36.10) |
| Manufacturing Type |
Buttweld (Seamless & Welded) |
| Design Standard |
ASME B16.9, MSS-SP-43 (Stainless Steel Fittings) |
| Surface Treatment |
Pickled & Passivated, Electro-Polished, or Bright Finish |
| Condition |
Solution Annealed & Quenched |
| Testing |
Radiography (RT), PMI, Ultrasonic (UT), Hydrostatic Test |
SS Pipe Tees Size Guide
| Nominal Size |
Wall Schedule |
Type |
Recommended Use |
| 1/2" - 2" |
SCH 10S / 40S / 80S |
Seamless |
Small-bore process lines |
| 2-1/2" - 8" |
STD / XS / SCH 40S |
Seamless / Welded |
General process piping |
| 10" - 24" |
Standard/Heavy Wall |
Butt weld |
Plant & refinery main headers |
| Above 24" |
As per project specs |
Fabricated |
Custom large-scale infrastructure |
| Custom Requirement |
Custom dimensions, exotic SS grades (316Ti, 904L), and drawings are available. |
Industry Applications
Petrochemical & Gas Refineries
Municipal Water Distribution
Pharmaceutical & Chemical Units
