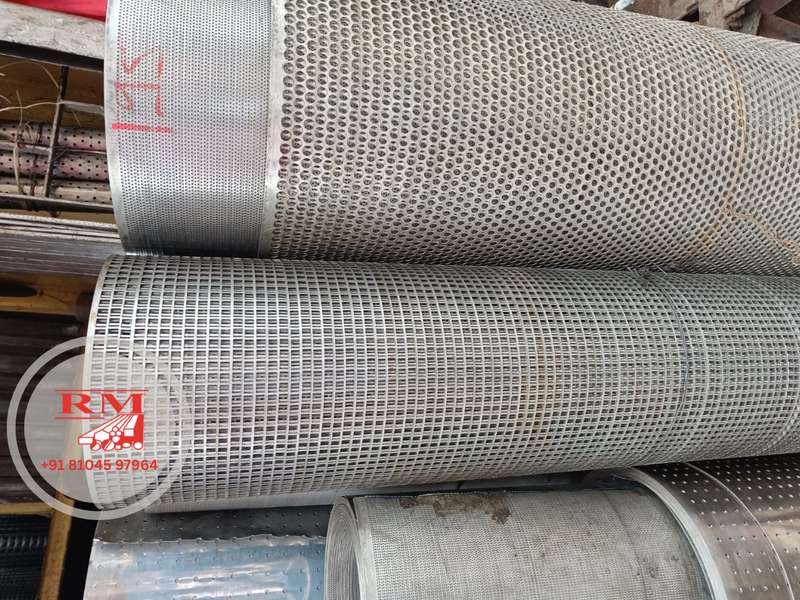

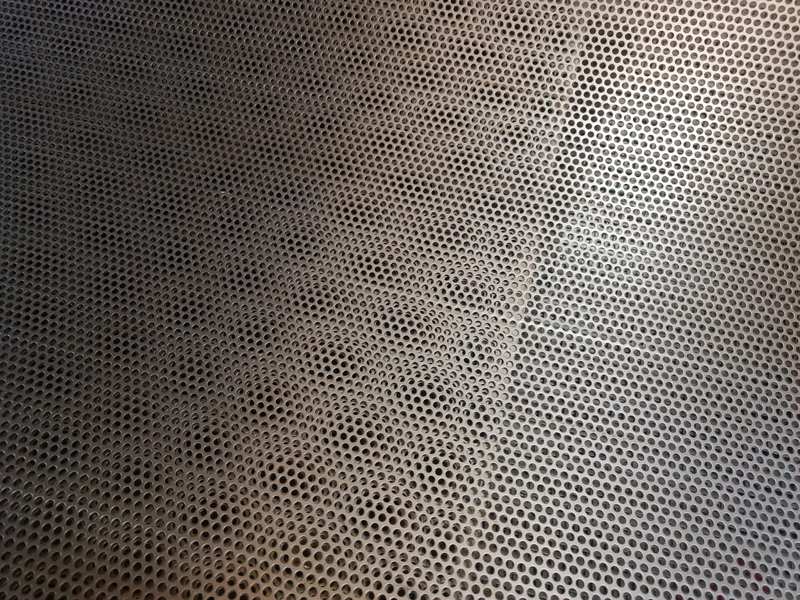

Stainless Steel Perforated Sheets
Raj Metals specializes in Stainless Steel Perforated Sheets, designed for superior ventilation, filtration, and aesthetic appeal. Our sheets feature accurately punched hole patterns available in various shapes, including round, square, slotted, and decorative designs. Primarily manufactured in SS 304 and SS 316 grades, these sheets offer the perfect balance of structural strength and open-area ratio. Whether used for industrial sifting, acoustic dampening, or modern architectural facades, our perforated sheets are processed to ensure burr-free edges and consistent hole pitch.
Key Features
✓ High Strength-to-Weight Ratio
✓ Uniform Hole Size & Pitch
✓ Excellent Ventilation & Airflow
✓ Accurate Filtration Capabilities
Product Specifications
| Parameter | Details |
|---|---|
| Product Form | S.S. 304 Perforated Sheets / Rolls |
| Standard Roll Size | 1mm Thickness x 4 Feet Width x 32 Feet Roll |
| Hole Shapes | Capsule Holes, Square Holes, Rectangular Holes, Round Holes |
| Customization | Available in all Thicknesses, Hole Dia, Pitch, and Hole-to-Hole Distance |
| Other Available Grades | S.S. 316L and S.S. 310 |
| Delivery Period | Ready Stock (Standard Items) | 7 Days Lead Time (Non-Standard) |
| Requirement | Manufactured as per Particular Required Size |
| Standard | ASTM A240, AISI, JIS |
SS Perforated Sheets Size Chart
| Thickness (mm) | Hole Size / Diameter (mm) | Pitch (Center to Center) | Standard Sheet Size (ft) |
|---|---|---|---|
| 0.5 mm to 1.0 mm | 0.5 mm - 2.0 mm | 1.0 mm - 4.0 mm | 4ft x 8ft, 1m x 2m |
| 1.2 mm to 2.0 mm | 2.0 mm - 10.0 mm | 3.5 mm - 15.0 mm | 4ft x 8ft, 4ft x 10ft |
| 2.5 mm to 5.0 mm | 5.0 mm - 25.0 mm | 8.0 mm - 35.0 mm | 4ft x 8ft, 5ft x 10ft |
| 6.0 mm to 10.0 mm | 10.0 mm - 50.0 mm | 15.0 mm - 75.0 mm | Custom Sizes Available |
| Hole Patterns | Round, Square, Rectangular, Hexagonal, Slot, Decorative | ||
| Surface Finish | 2B, HR, No.4 Matt PVC, Mirror Finish, BA Finish | ||
