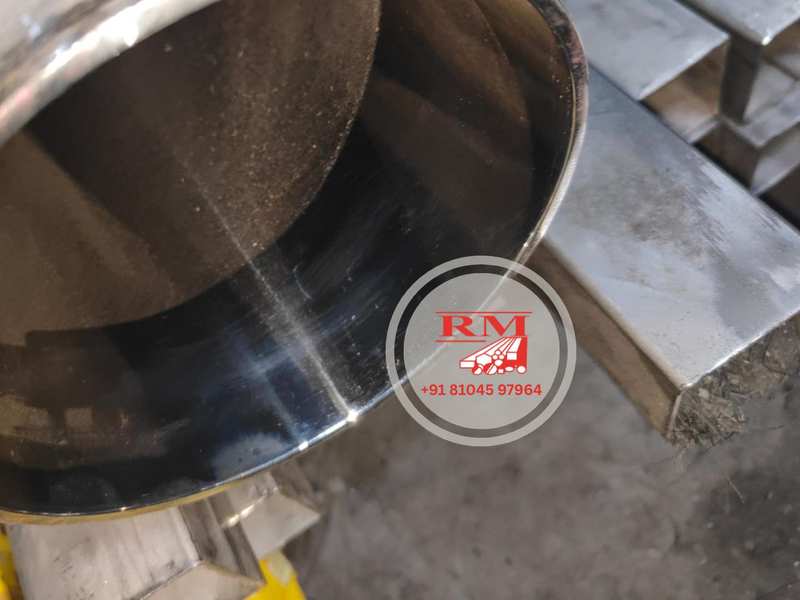

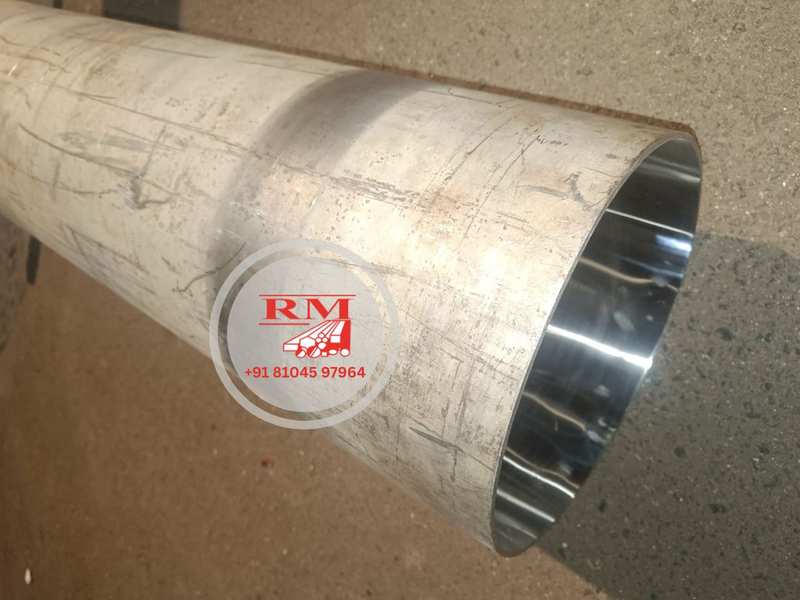

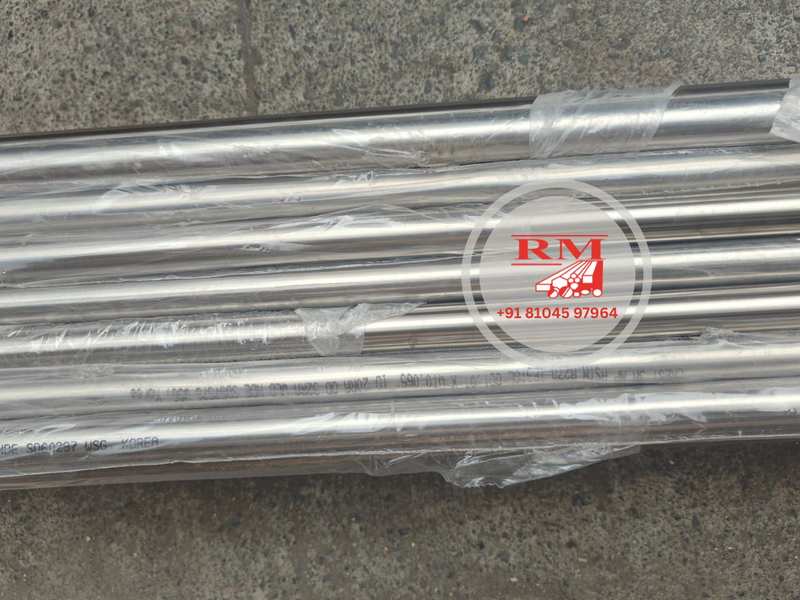

SS Electro Polished Pipes
Raj Metals supplies SS Electro Polished Pipes for sanitary process lines where cleanliness, corrosion resistance, and smooth flow are critical. These pipes are manufactured from stainless steel grades such as SS 304L and SS 316L, then polished and Electro Polished to reduce surface roughness and support hygienic service in pharma, dairy, beverage, and high-purity utility systems.
Key Features
✓ Hygienic Electro Polished bore for clean product flow
✓ Excellent corrosion resistance in CIP and process media
✓ Low product hold-up with smooth internal surface
✓ Suitable for orbital welding and sanitary fabrication
Product Specifications
| Parameter | Details |
|---|---|
| Product Form | Electro Polished stainless steel sanitary pipes |
| Size Range | 1/2 inch to 6 inch and project-specific sizes |
| Material Grade | SS 304 / SS 304L / SS 316 / SS 316L |
| Surface Finish | Internal Electro Polished / mirror finish, external matt or satin finish |
| Standards | SMS, DIN, ISO, BS, 3A sanitary standards as applicable |
| Certification | Material Test Certificate and surface finish report available on request |
| Quality Checks | Dimensional inspection, finish verification, pressure / leak testing where applicable |
SS Electro Polished Pipes Size Chart
| Size / Range | Material / Finish | Connection / Form | Recommended Use |
|---|---|---|---|
| 1/2 inch - 1 inch | SS 304L / SS 316L EP finish | Plain end / orbital weld ready | Sampling, instruments, and utility loops |
| 1-1/2 inch - 3 inch | SS 304 / SS 316 sanitary finish | Weld end / TC end on request | Main dairy and pharma process transfer |
| 4 inch - 6 inch | SS 316L high-purity finish | Weld end / fabricated spool | High-volume transfer lines |
| Above 6 inch | As per project grade | Custom fabricated | Special process and utility lines |
| Custom Requirement | Custom sizes, grades, finishes, and drawings are available on request. | ||
