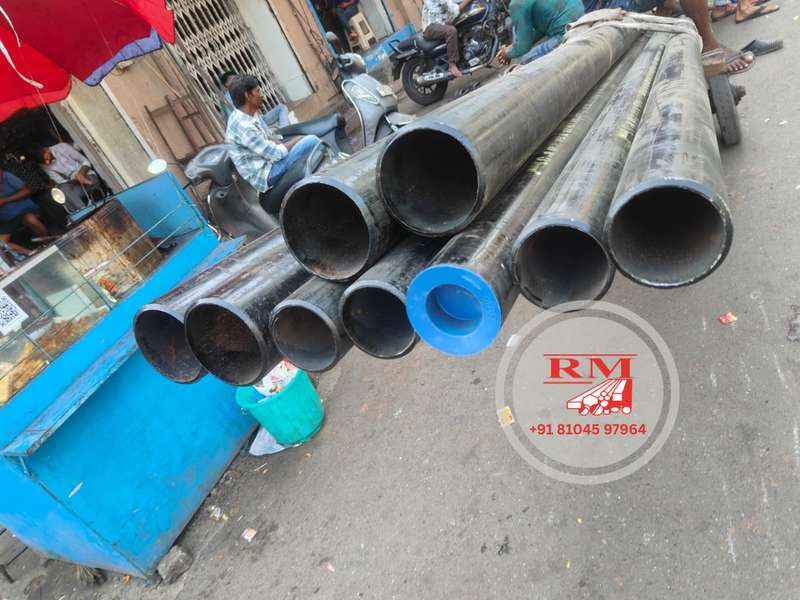

Seamless Pipes
Raj Metals provides -grade Seamless Pipes engineered for high-pressure and high-temperature environments. Unlike welded pipes, our seamless pipes are manufactured through solid extrusion, ensuring a uniform structure with no weak points. This makes them the preferred choice for critical applications in oil and gas refineries, power plants, and hydraulic systems. Available in Stainless Steel, Carbon Steel, and Alloy Steel, our pipes guarantee maximum safety, exceptional corrosion resistance, and long-term reliability.
Key Features
✓ Zero Weld Seams for Maximum Pressure
✓ Excellent Dimensional Accuracy
✓ Superior Corrosion & Heat Resistance
✓ High Structural & Tensile Strength
Product Specifications
| Parameter | Details |
|---|---|
| Product Form | Carbon Steel Seamless Pipes / Tubes |
| Material Grade | ASTM A106 / SA 106 Grade B |
| Size Range | 1/8" NB to 24" NB (Custom sizes available) |
| Thickness (Schedule) | SCH 5, SCH 10, SCH 40, SCH 80, SCH 160, SCH XXS |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD |
| Certification | IBR & Non-IBR Certified Material |
| Make / Origin | Jindal Star, ISMT (Indian Seamless Metal Tubes), Maharashtra Seamless Ltd. (MSL), etc. |
| Documentation | Provided with Mill Test Certificates (MTC) |
| Surface Treatment | Annealed, Pickled, Polished, Black Phosphated, or Galvanized |
| Length | Single Random, Double Random, or Custom Cut Length (up to 12 meters) |
| End Connections | Plain End, Beveled End, Threaded, or Coupled |
| Standard | ASTM A312, A106 Gr. B, A333, A335, API 5L, ASME B36.10 |
| Condition | Cold Drawn, Hot Rolled, Solution Annealed, or Bright Annealed |
Carbon Steel Seamless Pipes Size Chart
| Nominal Bore (NB) | Outer Diameter (OD) | Schedule (Wall Thickness) | Standard Length |
|---|---|---|---|
| 1/2" NB | 21.3 mm | SCH 40, SCH 80, SCH 160, XXS | 6 Meters / 12 Meters |
| 3/4" NB | 26.7 mm | SCH 40, SCH 80, SCH 160, XXS | 6 Meters / 12 Meters |
| 1" NB | 33.4 mm | SCH 40, SCH 80, SCH 160, XXS | 6 Meters / 12 Meters |
| 2" NB | 60.3 mm | SCH 40, SCH 80, SCH 160, XXS | 6 Meters / 12 Meters |
| 4" NB | 114.3 mm | SCH 40, SCH 80, SCH 120, SCH 160 | 6 Meters / 12 Meters |
| 8" NB | 219.1 mm | SCH 20, SCH 40, SCH 80, SCH 120 | 6 Meters / 12 Meters |
| 12" NB | 323.8 mm | SCH 20, SCH 40, SCH 80, SCH XS | 6 Meters / 12 Meters |
| Grades | ASTM A106 Grade B, ASTM A53 Grade B, API 5L Grade B, X42, X52 | ||
