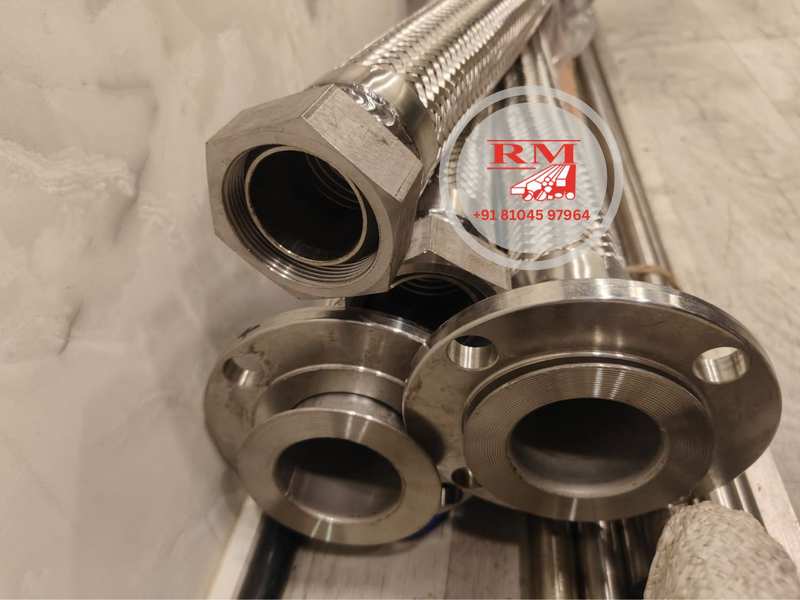

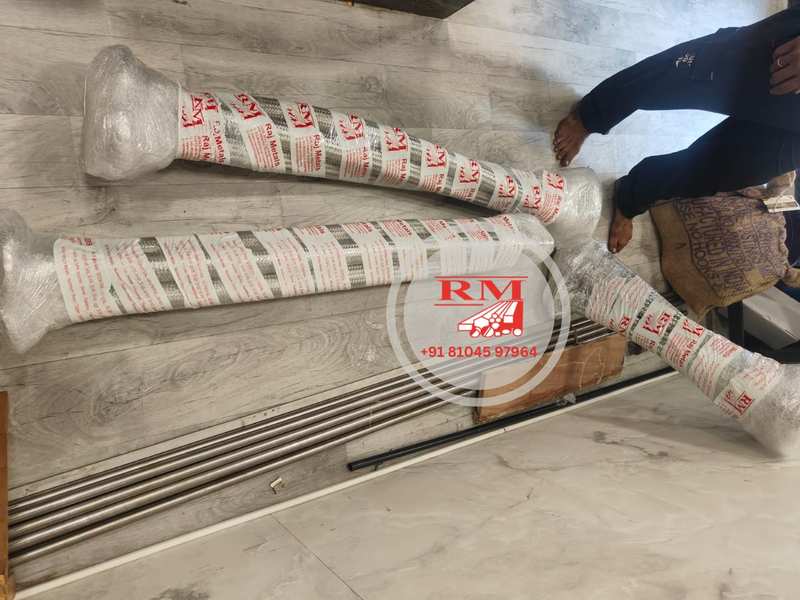

SS Braided Hose Pipes
Raj Metals supplies SS Braided Hose Pipes, flexible stainless steel braided hose pipes for vibration control, pressure transfer, thermal movement, and safe fluid handling. We provide dependable material selection, cutting support, documentation, and supply coordination for project and maintenance requirements.
Key Features
✓ Flexible braided construction
✓ Good pressure and vibration resistance
✓ Suitable for steam, gas, oil, water, and chemicals
✓ Available with custom fittings
Product Specifications
| Parameter | Details |
|---|---|
| Material Family / Product Form | Stainless Steel Flexible Hose Pipes |
| Common Grades | SS 304, SS 316, SS 321 |
| Available Forms | Bars, Sheets, Plates, Pipes, Tubes, Fittings, Fasteners, and custom cut material as applicable |
| Standards | ASTM, ASME, AMS, DIN, EN, JIS, and client-specific equivalent grades |
| Finish Options | Bright, black, pickled, polished, machined, or as per requirement |
| Quality Support | MTC, PMI, dimensional inspection, third-party inspection, and traceability on request |
SS Braided Hose Pipes Size Chart
| Nominal Size (DN) | Inside Diameter (ID) | Outside Diameter (OD) | Working Pressure (Bar) |
|---|---|---|---|
| DN 6 (1/4") | 6.5 mm | 11.5 mm | 100 Bar |
| DN 12 (1/2") | 12.8 mm | 18.5 mm | 65 Bar |
| DN 25 (1") | 25.5 mm | 33.5 mm | 40 Bar |
| DN 50 (2") | 50.5 mm | 61.5 mm | 28 Bar |
| DN 100 (4") | 101.5 mm | 116.0 mm | 15 Bar |
| Temperature Range | -200°C to +600°C | ||
