Stainless Steel (SS) Spiral Wound Gaskets

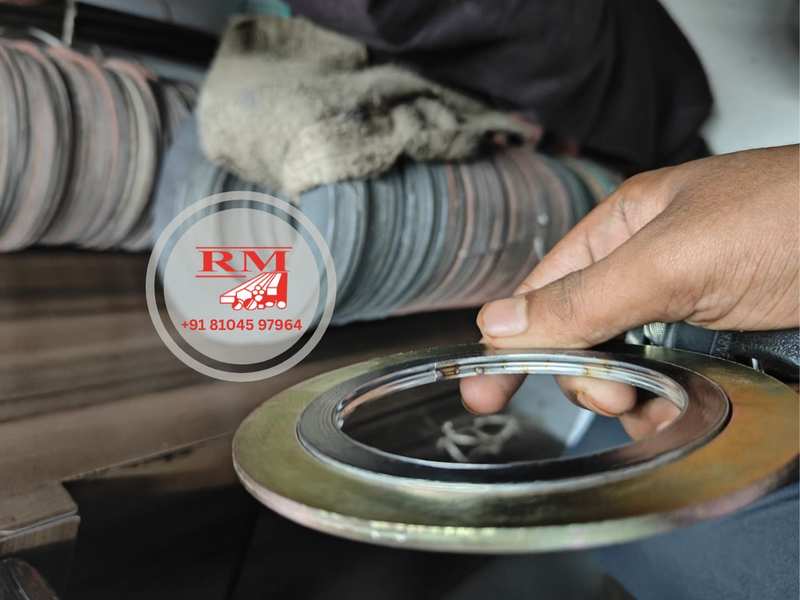

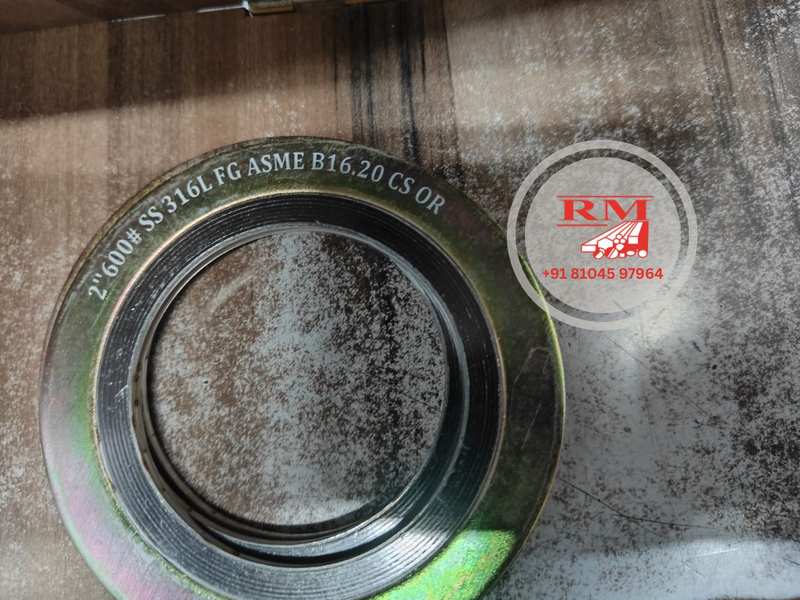

Our premium Stainless Steel (SS) Spiral Wound Gaskets utilize high-grade metallic winding strips and guide rings, primarily sourced in SS 304, SS 316L, or SS 321, and paired with high-purity flexible graphite or PTFE fillers. This construction ensures maximum resistance to chemical degradation, high temperatures, and structural blowouts. These stainless steel variants are crucial for mitigating flange face erosion and micro-leakage, offering an unyielding seal across aggressive chemical lines, steam networks, and cryogenic processing operations.
Key Features
✓ Exceptional Recovery Under Fluctuating Loads
✓ High Resistance to Blow-out & Pressure Surges
✓ Precise Centering with Solid Metal Outer Rings
✓ Prevents Turbulence with Protective Inner Rings
Product Specifications
| Parameter | Details |
|---|---|
| Gasket Styles | Style R (Basic), Style CG (Outer Ring), Style CGI (Inner & Outer Rings) |
| Winding & Ring Material | Stainless Steel (SS 304, SS 316L, SS 321, SS 347) |
| Filler Material | High-Purity Flexible Graphite, PTFE, Mica, Ceramic |
| Size Range | 1/2" to 60" (Standard Flange Sizes) | Custom dimensions on request |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 | PN10 to PN400 |
| Standard Thickness | 3.2 mm, 4.5 mm (Standard), 6.4 mm, 7.2 mm |
| Design Standard | ASME B16.20 (Standard for SWG), API 601 |
| Suitability | Raised Face (RF), Flat Face (FF), Tongue & Groove (T&G), Ring Type Joint (RTJ) Flanges |
| Surface Treatment | Color-coded as per ASME B16.20 for easy material identification |
| Inspection | Dimensional Check, Compressibility & Recovery Test, PMI Testing (for SS components) |
High-Resilience & Stainless Steel Spiral Wound Gaskets Size Chart
| Nominal Size | Pressure Class | Type | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | 150# / 300# / 600# | RF / FF / RTJ | Small bore flanges |
| 2-1/2" - 8" | 150# / 300# / 600# / 900# | Spiral wound / Ring / Sheet | Process piping |
| 10" - 24" | 150# / 300# / 600# | Standard and custom thickness | Plant maintenance |
| Above 24" | As per project duty | Custom OD / ID | Project requirement |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316L), custom filler materials, and drawings are available on request. | ||
