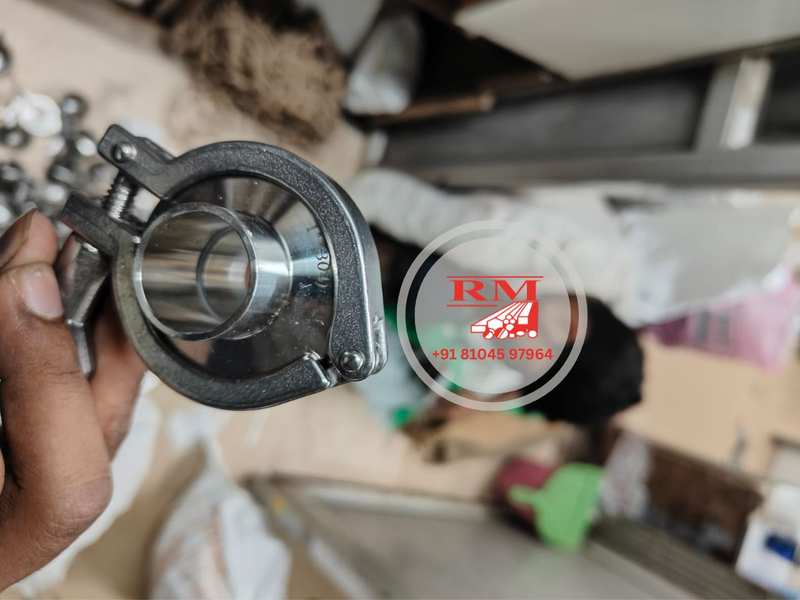

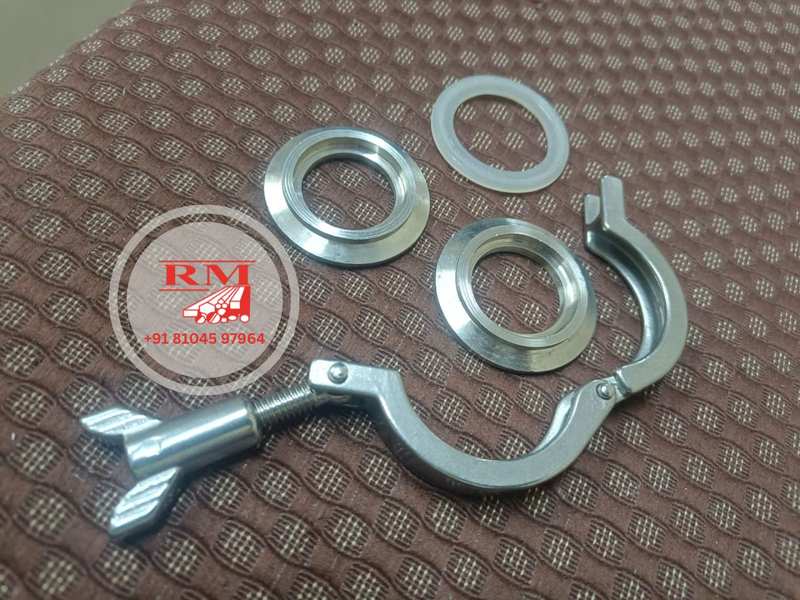

SS TriClover (TC) Clamp Sets
Raj Metals supplies durable SS TriClover (TC) Clamp Sets for quick-opening sanitary joints. These clamp assemblies provide reliable leak-tight connections for ferrules, gaskets, valves, and equipment nozzles used in dairy, pharma, beverage, and food processing systems.
Key Features
✓ Quick assembly and dismantling for cleaning
✓ Strong stainless steel clamp construction
✓ Compatible with standard TC ferrules and gaskets
✓ Available with wing nut or heavy-duty bolted design
Product Specifications
| Parameter | Details |
|---|---|
| Product Form | TC clamp set with clamp, nut, and compatible gasket options |
| Clamp Type | Single pin, double pin, high-pressure, wing nut type |
| Material Grade | SS 304 / SS 304L / SS 316 / SS 316L |
| Surface Finish | Internal electropolished / mirror finish, external matt or satin finish |
| Standards | SMS, DIN, ISO, BS, 3A sanitary standards as applicable |
| Certification | Material Test Certificate and surface finish report available on request |
| Quality Checks | Dimensional inspection, finish verification, pressure / leak testing where applicable |
SS TriClover (TC) Clamp Sets Size Chart
| Size / Range | Material / Finish | Connection / Form | Recommended Use |
|---|---|---|---|
| 1/2 inch - 1 inch | SS 304 / SS 316 | Single pin clamp | Small sanitary connections |
| 1-1/2 inch - 3 inch | SS 304 / SS 316 | Wing nut / double pin clamp | Regular process line joints |
| 4 inch - 6 inch | SS 316 heavy-duty | High-pressure clamp option | Larger transfer lines |
| Custom size | As per duty | Special clamp assembly | Equipment and project requirements |
| Custom Requirement | Custom sizes, grades, finishes, and drawings are available on request. | ||
