Stainless Steel (SS) Foundation Bolts
Our premium Stainless Steel (SS) Foundation Bolts are meticulously engineered to provide exceptional resistance to corrosion, subterranean moisture, and chemical degradation. Fabricated from high-grade austenitic stainless steels, including SS 304, SS 316, and SS 316L, these anchors are essential for preventing structural weakening caused by rust and oxidation inside concrete structures. They are the preferred choice for marine infrastructure, wastewater treatment plants, coastal installations, and chemical processing facilities where long-term foundational integrity is absolutely critical.
Key Features
✓ Exceptional Pull-Out Resistance & Anchor Strength

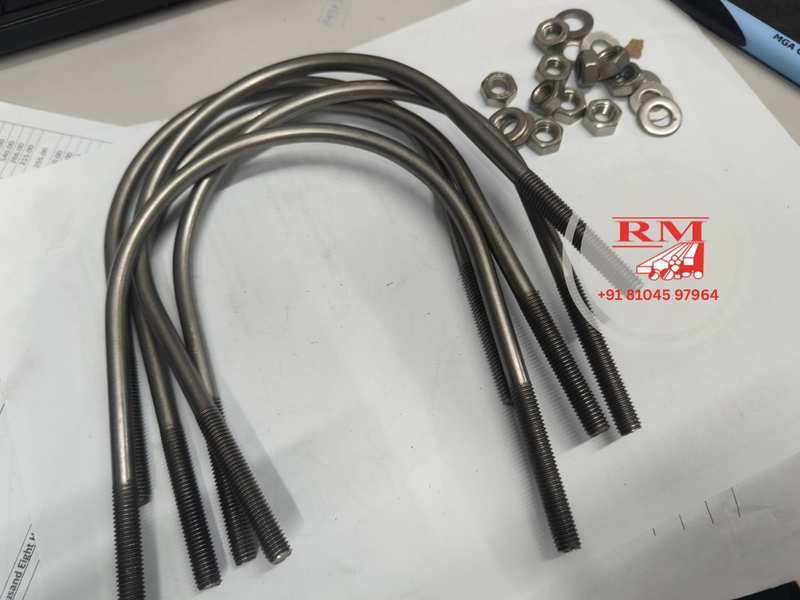

✓ Available in L-Type, J-Type, U-Bolt, and Plate Type Designs
✓ Forged Hooks and Bends for Superior Concrete Grip
✓ Hot-Dip Galvanized Coating for Underground Corrosion Protection
Product Specifications
| Parameter | Details |
|---|---|
| Bolt Type | L-Type, J-Type, U-Type, Eye-Type, Plate Type, Bent Anchor Bolts, Stainless Steel Foundation Bolts |
| Material of Construction | Stainless Steel (SS 304, SS 316, SS 304L, SS 316L) |
| Size Range | M12 to M100 | 1/2" to 4" Diameter |
| Length | 100 mm to 3000 mm (Custom lengths for deep anchoring) |
| Thread Type | Metric (Coarse), UNC, 8-Thread Series (8-TPI) |
| Configurations | Full Threaded, Partial Threaded, and Bent Hooks |
| Surface Treatment | Pickled & Passivated (for SS), Plain (Black), Hot Dip Galvanized (HDG), Zinc Plated, Epoxy Coating |
| Standard Compliance | ASTM F1554 (Grade 36, 55, 105), ASTM A193 / A320 (for SS configurations), IS 5624, DIN 529 |
| Quality Testing | Tensile/Yield Strength Test, Dimensional Check, Coating Thickness (for HDG), PMI Testing (for SS) |
High-Tensile & Stainless Steel Foundation Bolts Size Chart
| Size Range | Thread / Pitch | Type | Recommended Use |
|---|---|---|---|
| M6 - M12 | Coarse / Fine thread | Full thread / Half thread | Light assembly |
| M16 - M30 | Metric / UNC / UNF | Bolt, nut, stud, washer | Structural and machinery |
| M36 - M72 | Custom pitch | Stud bolts / foundation bolts | Heavy equipment |
| Above M72 | As per drawing | Custom manufactured | Project-specific fastening |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316, SS 316L), finishes, and drawings are available on request. | ||
