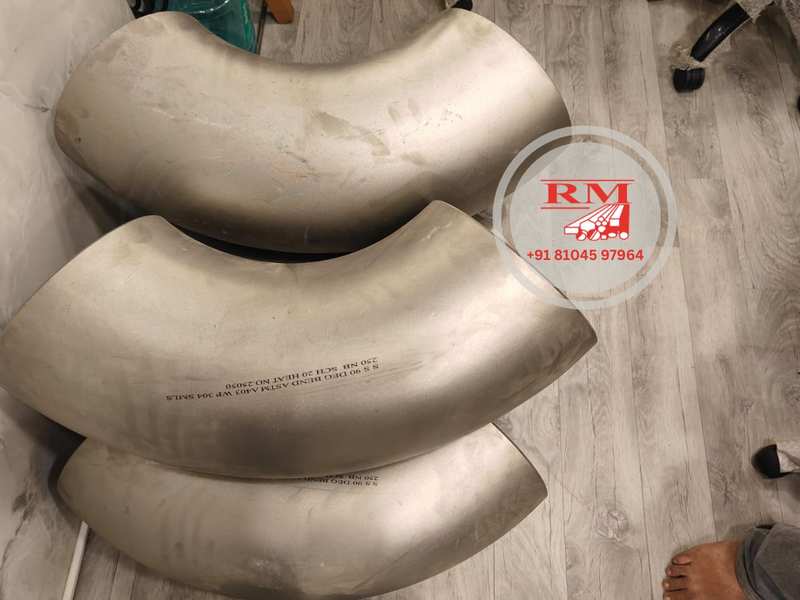

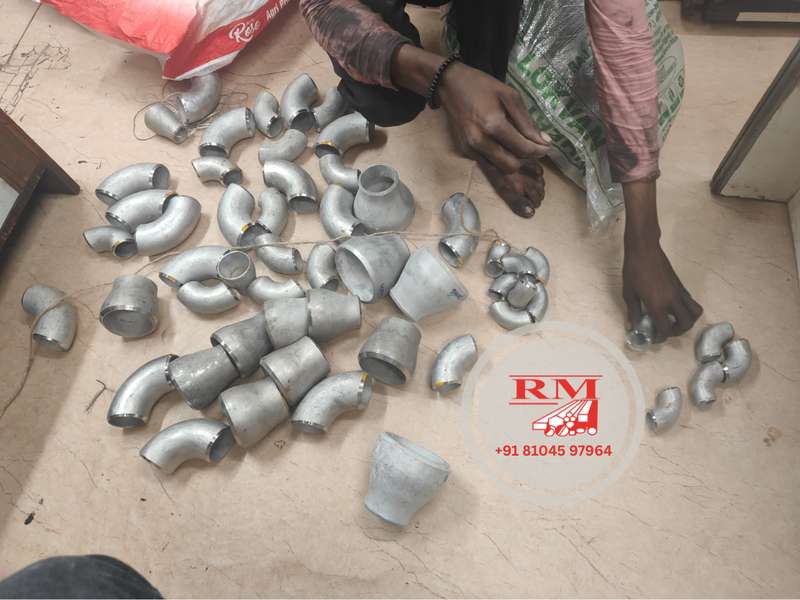

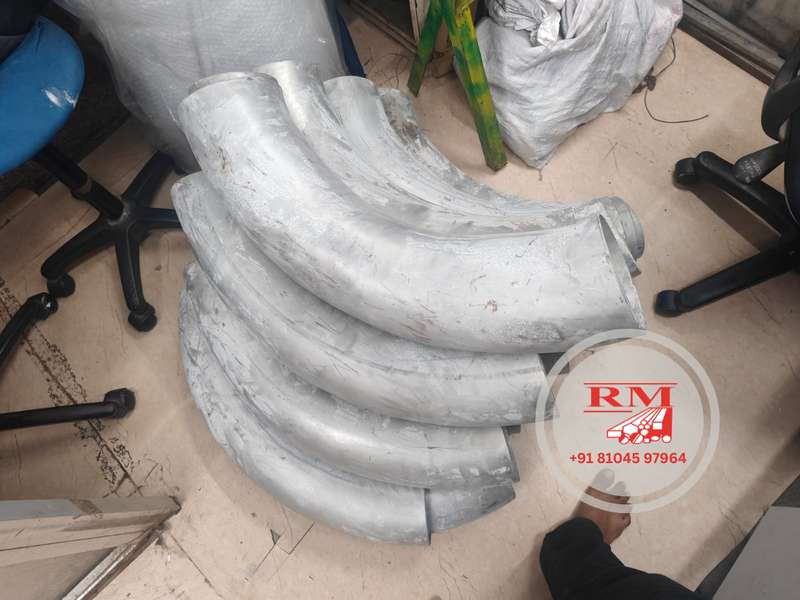

Stainless Steel (SS) Pipe Elbows
Raj Metals is a leading manufacturer of precision-engineered Stainless Steel Pipe Elbows, available in 45-degree and 90-degree configurations. Designed for critical fluid-handling systems, our elbows ensure seamless directional changes while maintaining the highest levels of corrosion resistance in aggressive environments. We offer both Long Radius (LR) elbows for smooth flow transition and Short Radius (SR) elbows for compact, space-constrained installations. Manufactured from high-grade SS 304, 304L, 316, and 316L alloys, our elbows deliver uniform wall thickness and exceptional durability, making them the ideal choice for high-purity applications in chemical processing, pharmaceuticals, and marine piping systems.
Key Features
✓ Precision 45° and 90° Directional Changes
✓ Superior Corrosion Resistance (SS 304/316 Grades)
✓ Available in Long Radius (LR) & Short Radius (SR)
✓ Smooth Internal Finish for High-Purity Fluid Flow
Product Specifications
| Parameter | Details |
|---|---|
| Product Form | 90° Elbow, 45° Elbow, 180° Return Bend |
| Material Grades | SS 304, SS 304L, SS 316, SS 316L, 316Ti, 321 |
| Radius Types | Long Radius (LR - 1.5D), Short Radius (SR - 1.0D), 3D, 5D Bends |
| Size Range | 1/2" NB to 72" NB (Seamless & Welded) |
| Wall Thickness | SCH 10S, 40S, 80S, STD, XS, 160 |
| Manufacturing Type | Buttweld (Seamless & Fabricated), Forged (SW / NPT) |
| Surface Finish | Pickled, Passivated, Electro-polished, Bright Finish |
| Design Standard | ASME B16.9 (Buttweld), ASME B16.11 (Forged), MSS-SP-43 |
| Testing Available | Hydrostatic, Ultrasonic (UT), X-Ray (RT), PMI, Hardness Test |
| Certification | MTC EN 10204 3.1, NACE MR0175 / MR0103, IBR Approved |
Stainless Steel Pipe Elbows Size Chart
| Nominal Size | Schedule / Class | Type | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | SCH 10S / 40S / 80S | Seamless / Welded | Instrumentation & food/pharma processing |
| 2-1/2" - 8" | STD / XS / SCH 80S | Buttweld / Socket weld | Chemical process piping & marine systems |
| 10" - 24" | Standard and heavy wall | Buttweld | Refinery, petrochemical & heavy industrial |
| Above 24" | As per drawing | Fabricated / Custom | Custom large-scale infrastructure projects |
| Custom Requirement | Custom sizes, SS grades (304/316/316L), and drawing-based manufacturing are available on request. | ||
