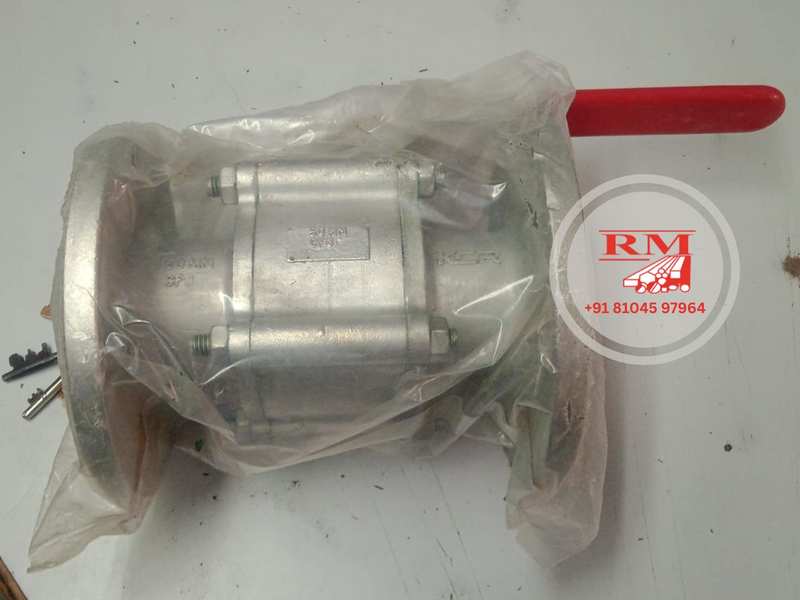

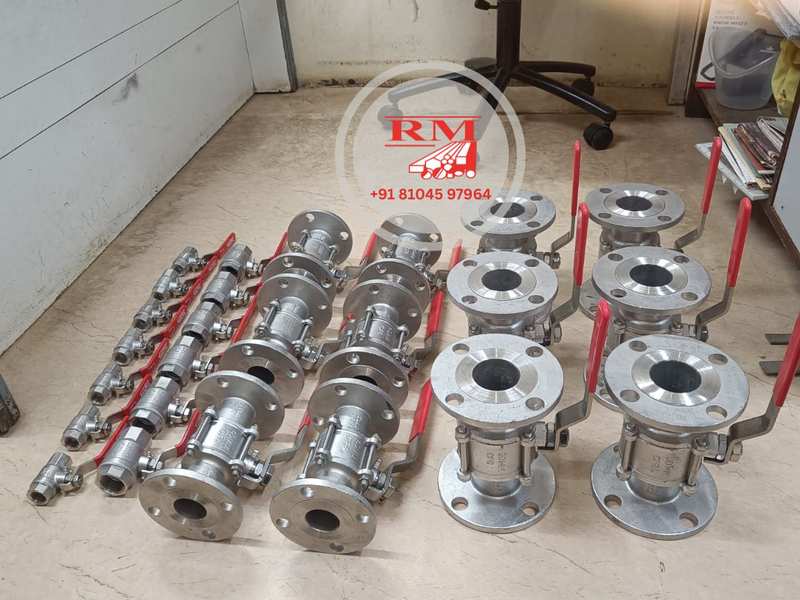

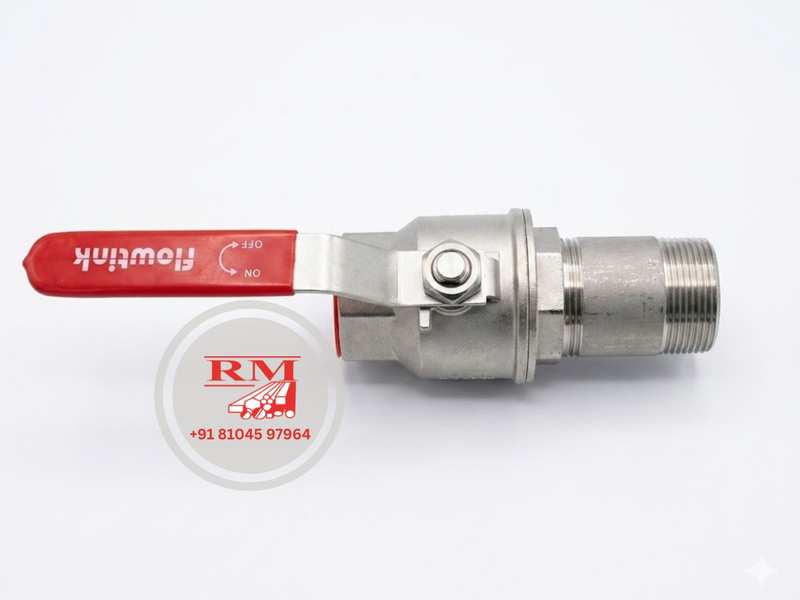

Ball Valves
Our premium Stainless Steel (SS) Ball Valves provide unmatched corrosion resistance and longevity for your most demanding piping networks. Fabricated from high-grade materials such as SS 304, SS 316, and SS 316L (CF8/CF8M), these valves are heavily utilized in chemical processing, petrochemicals, food and beverage, and pharmaceutical industries. The inherently robust stainless steel construction prevents rust and product contamination, guaranteeing safe, bubble-tight shut-off and reliable operation even when exposed to aggressive acids, harsh chemicals, or extreme weather conditions.
Key Features
✓ Quick 90-Degree On/Off Operation
✓ Blow-Out Proof Stem & Tight Sealing
✓ Superior Corrosion Resistance (SS 304/316)
✓ Ideal for Harsh Chemicals & High Temps
Product Specifications
| Parameter | Details |
|---|---|
| Valve Type | Floating Ball, Trunnion Mounted, 1-Piece, 2-Piece, 3-Piece, Multi-Port, Stainless Steel Ball Valve |
| Material of Construction | Stainless Steel (SS 304, SS 316, SS 304L, SS 316L, CF8, CF8M), Carbon Steel, Alloy Steel |
| Size Range | 1/4" to 36" (DN8 to DN900) |
| Pressure Rating | Class 150# to 2500# | PN10 to PN420 | 1000 WOG to 6000 PSI |
| End Connections | Flanged (RF, RTJ), Threaded (NPT/BSP), Socket Weld, Butt-Weld |
| Bore Type | Full Bore (FB) or Reduced Bore (RB) |
| Operation | Lever Handle, Gear Box, Pneumatic/Electric Actuation |
| Design Standard | API 6D, API 608, BS 5351, ASME B16.34 |
| Seating Material | PTFE, RPTFE, Peek, Devlon, or Metal-to-Metal (Stellite) |
| Safety Standards | Fire Safe (API 607/6FA), Anti-Static, Blow-out Proof Stem |
Industrial & Stainless Steel Ball Valves Size Chart
| Nominal Size | Pressure Class | Connection / Operation | Recommended Use |
|---|---|---|---|
| 1/2" - 2" | Class 150 / 300 / 600 | Threaded / Socket Weld / Flanged | Utility and process isolation |
| 2-1/2" - 8" | Class 150 / 300 / 600 / 900 | Flanged / Wafer / Lug | Plant piping service |
| 10" - 24" | Class 150 / 300 / 600 | Flanged / Gear operated | Large diameter flow control |
| Above 24" | As per project duty | Manual / Gear / Actuated | Custom industrial service |
| Custom Requirement | Custom sizes, stainless steel grades (e.g., SS 304, SS 316, SS 316L), finishes, and drawings are available on request. | ||
